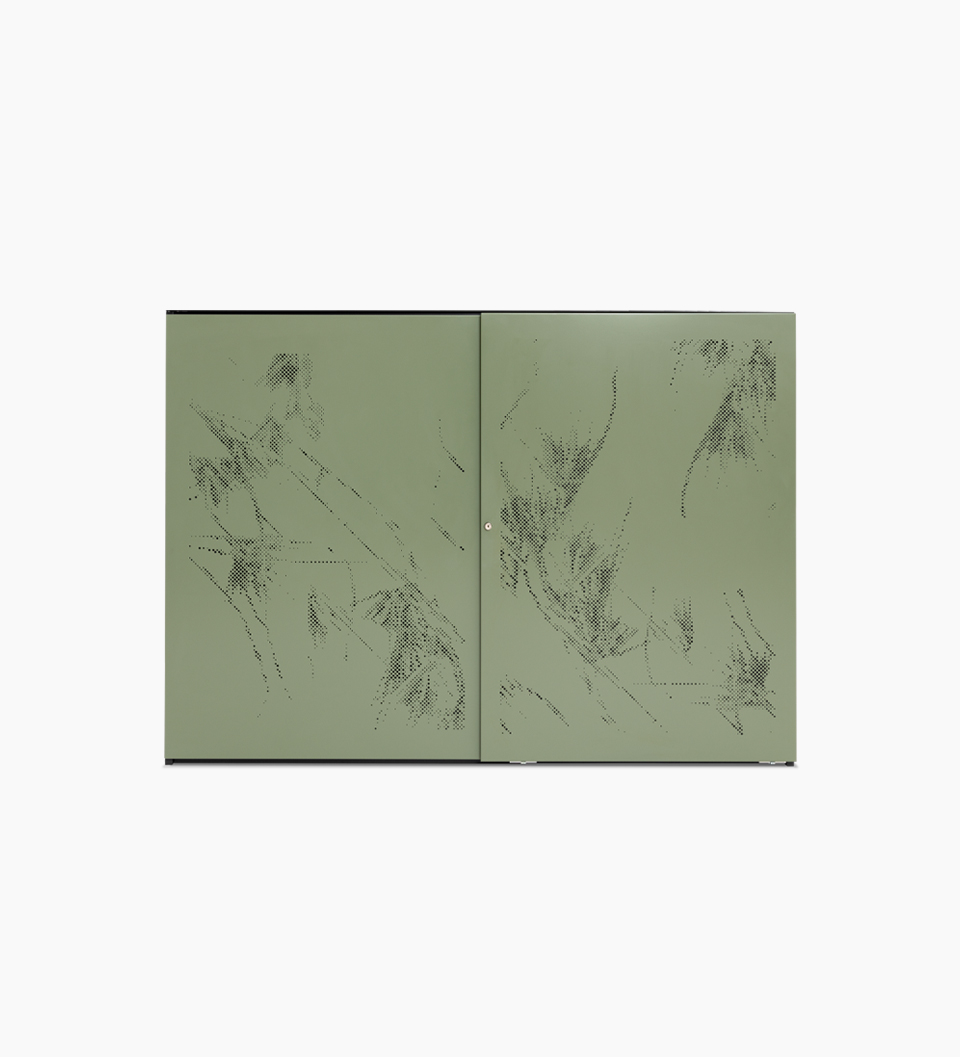

Linea Sliding Door Cabinet

Linea Sliding Door Cabinet

A freestanding structure that can be used to define work areas, Linea is a storage hub, a sound break and an anchor point.

Planex's Linea is the first Australian Sliding Door Cabinet to be awarded AFRDI Green Tick Platinum A-level Certification for sustainability within the commercial furniture industry. Linea is storage furniture with sliding doors that are fitted with acoustic rated sound absorbing material to minimise noise in the workspace. Available with single or dual sliding doors, Linea’s Dual Access option is the perfect storage solution when floor space is limited, and access to both sides is desirable. Available in 6 heights and 3 widths with single or dual access. Download the product files below for full specification details.

Manufacturer: Planex Sales Pty Ltd
Location: Hallam, Melbourne
Warranty: Ten years

Dimensions

Code (Single Access 3mm Top Fitted) Height Width Depth
18-LINEA-0697-1600 700 1600 500
18-LINEA-0997-1600 1000 1600 500
18-LINEA-1222-1600 1225 1600 500
18-LINEA-1447-1600 1450 1600 500
18-LINEA-1672-1600 1675 1600 500
18-LINEA-1897-1600 1900 1600 500
18-LINEA-0697-1800 700 1800 500
18-LINEA-0997-1800 1000 1800 500
18-LINEA-1222-1800 1225 1800 500
18-LINEA-1447-1800 1450 1800 500
18-LINEA-1672-1800 1675 1800 500
18-LINEA-1897-1800 1900 1800 520
18-LINEA-0697-2000 700 2000 500
18-LINEA-0997-2000 1000 2000 500
18-LINEA-1222-2000 1225 2000 500
18-LINEA-1447-2000 1450 2000 500
18-LINEA-1672-2000 1675 2000 500
18-LINEA-1672-2000 1900 2000 500
Code (Dual Access 3mm Top Fitted) Height Width Depth
18-LINEA-0697-1600-DA 700 1600 520
18-LINEA-0997-1600-DA 1000 1600 520
18-LINEA-1222-1600-DA 1225 1600 520
18-LINEA-1447-1600-DA 1450 1600 520
18-LINEA-1672-1600-DA 1675 1600 520
18-LINEA-1897-1600-DA 1900 1600 520
18-LINEA-0697-1800-DA 700 1800 520
18-LINEA-0997-1800-DA 1000 1800 520
18-LINEA-1222-1800-DA 1225 1800 520
18-LINEA-1447-1800-DA 1450 1800 520
18-LINEA-1672-1800-DA 1675 1800 520
18-LINEA-1897-1800-DA 1900 1800 520
18-LINEA-0697-2000-DA 700 2000 520
18-LINEA-0997-2000-DA 1000 2000 520
18-LINEA-1222-2000-DA 1225 2000 520
18-LINEA-1447-2000-DA 1450 2000 520
18-LINEA-1672-2000-DA 1675 2000 520
18-LINEA-1672-2000-DA 1900 2000 520

Materials

  • Welded body made of 100% recyclable BlueScope steel (with up to 20% recycled content)
  • Acupanel™ sound absorbing fabric

Colours/Finishes

  • Standard Dulux powder coats available in 150+ colours/finishes

Product Features

  • Leveling feet
  • Sound absorbing perforated sliding doors and backs panels laminated with charcoal coloured Acupanel™ sound absorbing material
  • The 6mm thick Acupanel™ material has been shown in tests to significantly reduce workplace noise
  • Twin sliding doors mounted on European mechanisms to provide smooth sliding operation
  • Diagonally opposite sliding doors, one each side
  • Floor of cabinet can be used as a shelf and is slotted to take twin-tab dividers
  • European locking system with interchange barrel locks (1000 random combinations)

Accessories Ordered Separately

  • 3mm low profile top, 20mm steel top, 20mm laminate top 227mm planter box available for 8’’ diameter pots (200mm)
  • Height when fitted with a planter box matches height of next unit size up
  • Shelves
  • Shelf wire rack (wrap around and toast rack)
  • Twin-tab dividers
  • Pull-out file frames for drawer files
  • Master keys and option to key-alike available

Manufacturing

  • Made in Melbourne, Australia using locally sourced materials
  • Manufactured for disassembly
  • Polymer parts labelled for segregation and sorting
  • Iron phosphate pre-treatment AS2331.3.1-2001 Method 3.1
  • Planex factory uses a 100kW roof-mounted solar array to provide up to 25% of manufacturing electricity needs

Environmental Certification

  • Furntech-AFRDI Certified Green Tick Standard 150-Commercial Furniture
  • Furntech-AFRDI Certified Blue Tick AS/NZS 4790 Level 3 Standard Storage Furniture
  • Production facility certified ISO14001 and ISO9001
  • Tested VOC compliant
  • Acoustic tested by RMIT acoustic lab
  • Compliant with Green Star requirements for Sustainable Products, having the highest level of certification to maximise contribution to Green Star points

Designer: Planex
